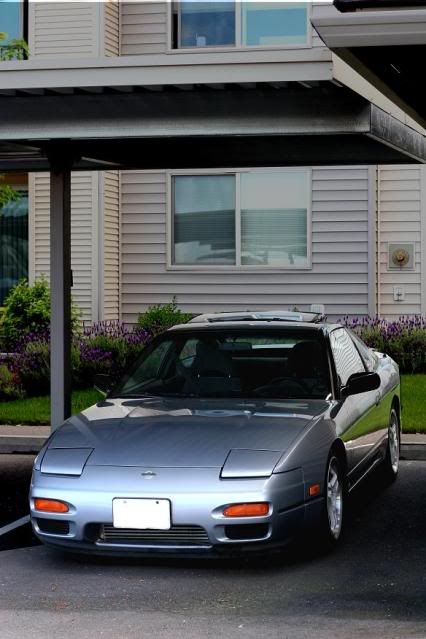

First day I got her (dad's checking it out) Gave the wheels to my sister, for her red s13 coupe lol

Working fogs

My Suby, and my Coupe...

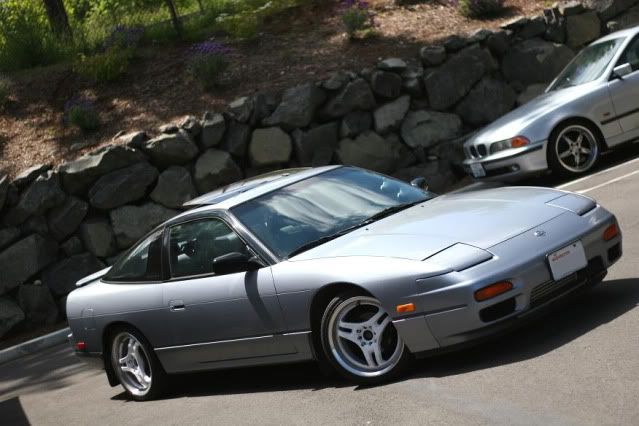

Sister's and mine..

custom catback with a welded on Blitz Nur spec muffler (Which i am selling since the pipe is 2.5 inch

Better angle of the exhaust

2.5" Mandrel bend and coated with ceramic header paint. Very cleanly done and sounds great on the KA. Again, FOR SALE! PM me.

Interior is pretty clean, haha automatic! Not for long...

Dirty engine bay... Notice how the valve cover is super clean lol, painted it when I did the valve stem seals..

Just need to remove radiator and few minor things and away with the KA

Thats if for now, still waiting for my motor to come in. Few more hours or so haha. Scheduled for delivery here shortly! I'll update tonight with pics of the crate. :wink:



Overall, great packaging no damage to the motor and everything is accounted for. I was pretty surprised that they sent the complete wiring for the car. Nothing was cut. My last swap pretty much sucked for wiring. Maf is super clean, ecu looks good. I am definitely content. Now for the pics

Dont mind the rusty old engine hoist... its still works ok?!

Mounted on the stand

Clutch and flywheel still have life on them. But gonna swap it out anyways..

No damage, woot woot!

Taking it apart tomorrow



Alight, a little more progress today. Only had an hour or so to work on it. Stripped the exhaust side of the block. Found a small problem though. One of the exhaust studs was broken off. So i'll have to extract it. Turbo has barely any shaft play and spins smooth and freely, which doesnt really matter cuz i'm upgrading that as well. No oil in the intake/throttle body which is a plus. Timing belt is still good, but i'll probably switch that out along with water pump. Still waiting for a bunch of aftermarket parts, i'll post those as they come in. But here's some pics from today.

Cams are good, little to no scoring. No oil buildup or sludge. Clean

Ready to clean and paint

Why do some RB20 cam covers have the embossed RB20 on it, and some dont? Tried to google it but nothing. Maybe one is from HCR32 and the other from a Cefiro?

A little cleaner



So today was a semi productive day. Continued cleaning some parts, painted the cam covers and cam cover. Also cleaned stock exhaust manifold and coated it with high temp ceramic header paint. I opted out of the stainless steel manifold... whhhhich may change down the road lol. Tomorrow I'm planning on cleaning the oem intake pipe, and outlet flange then paint. Now for pics...

Cleaned the best I could

High temp'd and ready to go

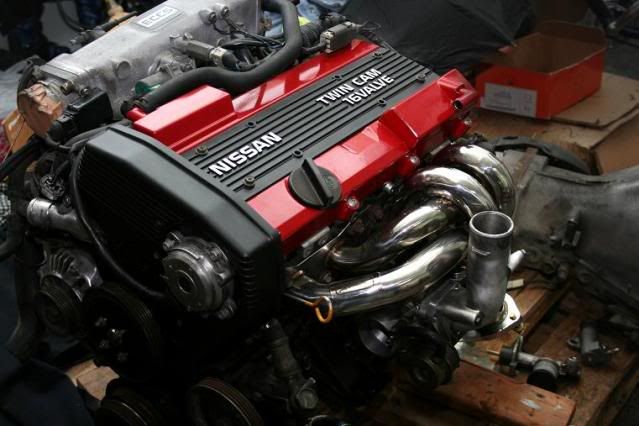

RB20 Power...

After clear coat

Still wet from clear



So couple more painted parts, got some stuff in, triple A-Pillar and walbro 255. Also picked up some side skirts from a fellow NWN'r for a great deal. He said it was GP Sports but i looked all over and i didnt see any that had a vent, and these have vents in them. Either way, i like them.

Put in the Walbro, and i'm almost done with the coil pack/spark plug cover. Did something a little different. Think im gonna pull KA the motor tomorrow. Ive been lazy and still waiting on some important things that i havent received yet (engine gasket/valve stem seal kit, motor and tranny brackets, dump/elbow pipe, downpipe, intercooler and piping, etc etc etc). Anyways... some more pics.

GP Sports? I dunno

Power steering pulley and clutch fan/water pump pulley

Crank Angle Sensor

Old fuel pump

Walbro 255 installed



So, i cant do anything till i get the engine/gasket rebuild kit and my new turbo... and still no conversion brackets! But i did get some new parts in the mail. Oh, and the coil pack cover w/o the clear coat. Here are the pics

Looks really good with the cam and valve cover

Greddy Shift Knob, I had this on my GS-T Eclipse back then, and loved the feel. Added 2 hp i think.

BKR6EIX Iridium spark plugs

Stainless steel clutch line and spare ignitor from a z32 i believe

I kno i kno... stock bov is sufficient, but the "boy racer" in me just loves the sound of this thing lol



Okay, so I didnt get to do much today. I thought i was going to have the day to take the motor out. But instead my wife and I had to go furniture shopping lol. A little Ikea, Mor Furniture for less.. Bed Bath and Beyond. But anyways, STILL no motor mounts or other goodies that i'm waiting for. Lame-sauce... But i was able to unbolt the drive shaft, front bumper removal, and the radiator/shroud was taken out. Some did something atleast.

All main wiring and ish are unplugged. Couple small things left

And here's a teaser of what the coil cover looks like with the cam covers...



Alright, so its been a bit since my last update. Just finished moving and finally got our internet today. Stopped by the parentals and took a picture of some things i got in the mail. Still no brackets. Still back ordered. I think i might ask to cancel that order and just get Top Hat brackets. Talked to them and they have theirs in stock. Anyways, here are some of the parts i got in =)

Oil adapter plate and coolant hose adapter

Blue/white Prosport electronic gauges (Boost, oil temp, water temp)

Clutch master cylinder

Turbo Elbow, used but got it with a spare O2 sensor. Which i was really after

dual 10" 850 cfm fans with temp relay

Intercooler

Exedy Stage 2 clutch kit (wasnt home so i had my little sister take some pics with her camera phone lol)

Silvia lights... i might sell the dual projectors and get the brick halog's



Finally, an update! Ive been waiting for some parts... and they are finally in. And a little more progress. Here are the pics.

Front bumper removed

Drained oil from motor and tranny

Jacked up for drive shaft removal

Open diff... pfff

Unbolted

Auto and manual drive shaft or propeller (as my dad calls it lol) Looks to be exactly the same length, even where the center bearing sits in the chassis. I probably could have just cut the collar off of the auto and it would have worked... oh well



Oh, almost forgot... the parts that I was waiting for.

Top Hat conversion brackets... ditched out on zerolift cuz they were back ordered

Better quality pics of my exedy stage 2 clutch kit

RB20 to S13 "divorced downpipe"

Intercooler piping that i'll be fab/welding myself, reinforced silicone hoses and tclamps

Cosmetic multilayer exhaust manifold gasket

Custom brake master cylinder heat shield

Ok, so here is where i deviated from the plan a bit. I did some research, and talked to a personal friend about his turbo from CX racing. I kno i kno, but hear me out. I thought about rebuilding the stock turbo, but i know at one point im going to want to up the boost, and with the ceramic wheel.. enough said. Second was to find a s15 t28, which required a different turbo elbow and downpipe. Orrr, CXracing GT28 brand new. I did some research on the one they made direct bolt on for rb20 and rb25. And for the power goals i have, seemed perfect. But i didnt want to invest in a turbo and have it blow up on me after a few thousand miles. So I reached out to some peeps and found someone that actually has the same turbo. My cousins friend has been using it on his RB25 for almost 2 years now. He drives it daily/drifting it at 15lbs. No smoke, and hasn't blown up on him so i went ahead and purchased it from CX. Here are the pics



Alright, motor is finally out... and few more parts. Next, clean and paint the bay.

Coolant overflow res

magnetic drain plug

ecu

ecu removed

all wiring unplugged

ka upper harness

stupid EGR, wouldnt budge... show had to use the sawzall

good bye automatic

Up, up...

and away with the KA... that rhymed.. unintentional

Dad and i love our toys..

lol, entire silvia front will be on soon...



Time Lapse of motor extraction

YouTube - KA24DE Motor extraction
Watch it in HD... the definition is higher... lol

http://www.youtube.com/watch?v=LWUEJdFGJIQ



A little more progress... Block was cleaned once more and high temped black. Also pulled the old spark plugs and put in the NGK iridium gapped the to 0.8mm. The old plugs weren't bad, little to no carbon buildup. Good sign.

Next day off, going to clean and paint engine bay.



Removed intake manifold, cleaned and painted stock piping and turbo outlet pipe. Ohhh, and front end came in while i was doing that

all cleaned up

painted, high temp aluminum

New shipment, my front end!

hood is perfect, no dings or dents

Front bumper is in good shape, needs paint...

mocked up fenders

Apexi filter for hcr32



Alright, so obviously i copy and pasted from a local forum that i'm in... but this is where i am right now



Looks great, I'm doing the same build! I was hoping someone else would pop up with an s13 coupe rb20 build!

Is the intercooler piping a kit or did you just buy pieces?



I bought a universal kit, going to fab and weld everything together myself!



Sounds cool, should be an awesome build!

I actually just got done pulling my ka!

I'll keep an eye on this thread



Sweet build man, I'm currently in the middle of an s14 RB20 swap. I noticed your intercooler has inlet and outlet on the same side, are you planning on running the piping all on the turbo side of the car?



Yup, gonna make it look clean!



looks like its coming along nicely! props. seems like its going to be a super clean car



I love red paint on the valve covers. I wish mine were not chrome plated when I bought the engine or I would have done mine red too. =(



you rock. check out my build. but i think the stage 2 clutch is overkill.. i used the clutch that came with my motorset. did youre set come with the rb det fuel pump?? mine did i put it in and no problems at all.. you are going to want to keep youre projectors as they are better for deiving than the bricks(i did a side by side comparison)..

who are you going to send youre harness to get fabricated(carl h gets it done). how much did that turbo cost?? and do you have a part number???



I'm actually gonna wire this up myself, did the wiring on the last two swaps i did. Saves money. As for the fuel pump, nope didn't come with it. But cant go wrong with a walbro. But yea, if i go bricks i'd go hid. Who am i kidding, i'm gonna go HID on my duals! lol Heres an update

Here's a teaser... mock up

Need a "dry" day so i cant paint the motor bay before finally dropping it in. But for the meantime, more cleaning and complete strip down of the bay (no unpainted chassis areas.. like where the flip ups used to be lol.) And got to pre wire my gauges.

Not sure where i'm gonna mount the after market tach... dont worry. Its not a monster tach, just a 52mm.



52mm? Can you read it lol?

Looks good so far.
Nice work



You talkin about the aftermarket tach? lol I might have to get a bigger one later. We'll see how it works out



nnnnnnnnnnnnnnnoooooooooooo links are broken.. and if you can wired it up yourself you are a badass..(the man) question.

-what kind of bulbs are you going to use for the projectors??

-and does that turbo elbow clear the steering rack??

-and more picks that arent borken



Yea, ive done as much research as i can. So i'll post up my wiring on here as well when im done. As for the bulbs, def. goin HID.

As for the steering rack, researched it before buying... and with my top hat mounts they fit perfect. Also, the downpipe i have is made to work for rb to s13. I'll post up pics as soon as i drop the motor in. BTW, motor bay is painted! Sooo close :beer2:

I just went through all the pics, none are dead links?? i would just press refresh. Big files

omg I just found this thread! amazing build! I miss my pearl white s14 w/ an rb20...sounded amazing!

Haha thank you! I cant wait to hear mine



omg I just found this thread! amazing build! I miss my pearl white s14 w/ an rb20...sounded amazing!
